Flame Scanners
ABB Uvisor TM Family of Flame Scanners

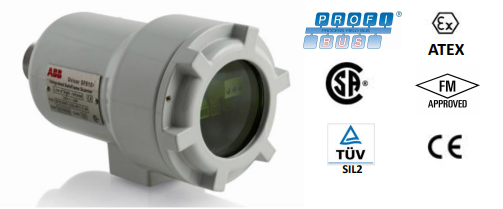

SF810i – Integrated Layout
The integrated flame scanner and signal processing unit incorporates the latest automation technology and requires less hardware to provide safe and reliable operation.
The Uvisor™ SF810i is a multi-fuel scanner designed to provide stable and reliable information of both the flame consistency and the flame quality on utility and industrial
boiler burners.
The integrated flame scanner and signal processing unit incorporates the latest automation technology and requires less hardware to provide safe and reliable operation.
The Uvisor™ SF810i is a multi-fuel scanner designed to provide stable and reliable information of both the flame consistency and the flame quality on utility and industrial
boiler burners.

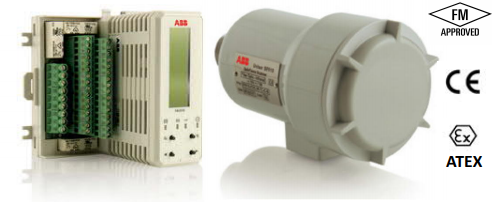

FAU810 + SF810 – Conventional Layout
FAU810 signal processing unit and the new SF810 flame scanner system.
The Uvisor™ SF810 is a multi-fuel flame scanner designed to provide stable and
reliable information of both the flame consistency and the flame quality on utility and
industrial boiler burners.
FAU810 signal processing unit and the new SF810 flame scanner system.
The Uvisor™ SF810 is a multi-fuel flame scanner designed to provide stable and
reliable information of both the flame consistency and the flame quality on utility and
industrial boiler burners.
ABB Uvisor TM Family of Flame Scanner Pyro

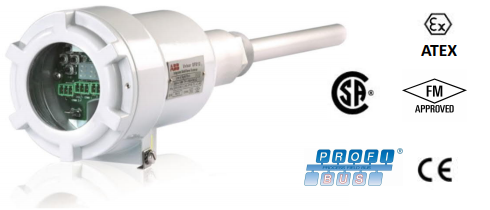

SF810i Pyro – Integrated Layout
The integrated flame scanner Pyro operates as both a Flame Scanner(sensor) and Pyrometer. With Precision and accuracy, SF810i Pyro offers “Live Flame Temperature” along with accurate flame sensing and provides qualitative information related to the burner combustion efficiency. Flame Analysis Unit is part of the integrated device which also reads the flame temperature online.
The integrated flame scanner Pyro operates as both a Flame Scanner(sensor) and Pyrometer. With Precision and accuracy, SF810i Pyro offers “Live Flame Temperature” along with accurate flame sensing and provides qualitative information related to the burner combustion efficiency. Flame Analysis Unit is part of the integrated device which also reads the flame temperature online.

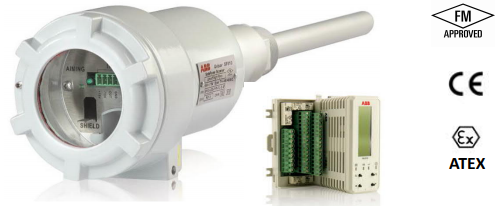

FAU810 + SF810 Pyro – Conventional Layout
SF810 Pyro is designed to meet the stringent requirement of safety and the challenging demand of qualitative information for a combustion monitoring system. SF810 Pyro is developed based on the award winning technology of SF810 Flame Scanner.
FAU810 analysis unit computes the Flame Temperature measurement in real time
SF810 Pyro is designed to meet the stringent requirement of safety and the challenging demand of qualitative information for a combustion monitoring system. SF810 Pyro is developed based on the award winning technology of SF810 Flame Scanner.
FAU810 analysis unit computes the Flame Temperature measurement in real time
